NFC + OTC Technology

ATM Mini Lock

NFC Lock with One Time Code — secure, convenient, multi-vendor

View Specifications Request Information

Flexible Operation

Online / Offline Use Cases

ATM Mini Lock works in both connected and offline environments — choose the workflow that fits your operation.

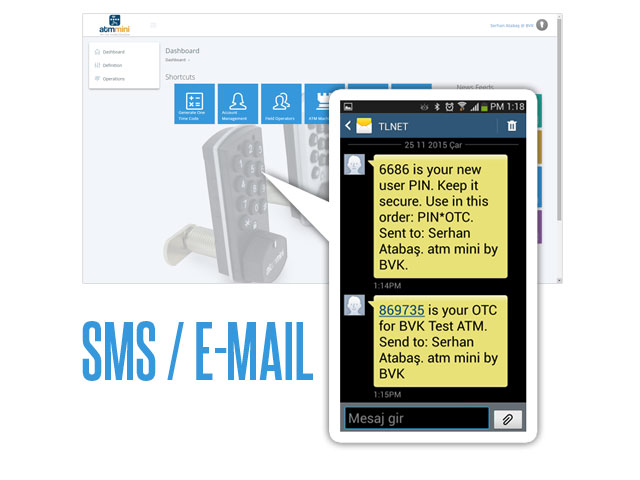

Manual offline use of ATM Mini Lock

Offline Mode

Manual Use (Offline)

Use with any ordinary mobile phone
No need for NFC phones
Use the Lock Management Software
Manually generated OTCs
OTC delivery via SMS, e-mail, or phone call

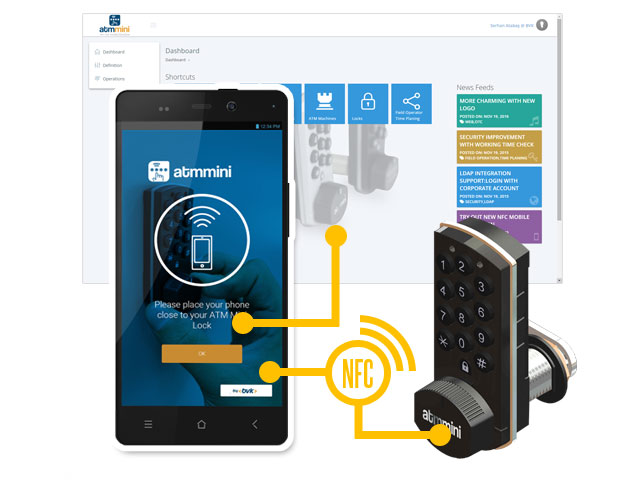

Mobile NFC online use of ATM Mini Lock

Online Mode

Mobile Use with NFC (Online)

Use with Android NFC phones
Automated workflow
Instant OTC request by mobile application
No need to key in the OTC — just "Touch & Open"

Universal Fit

Adaptive Installation

Four flexible mounting and orientation options to fit any ATM brand or model.

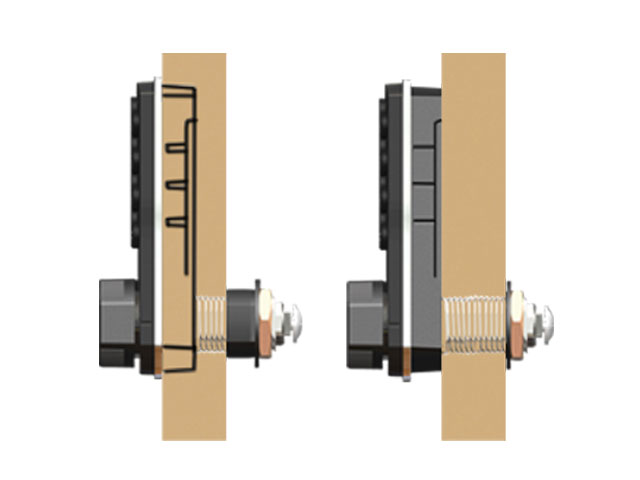

ATM Mini Lock installation types

Installation Types

Surface mounting (utilizing existing lock hole)
Recessed mounting

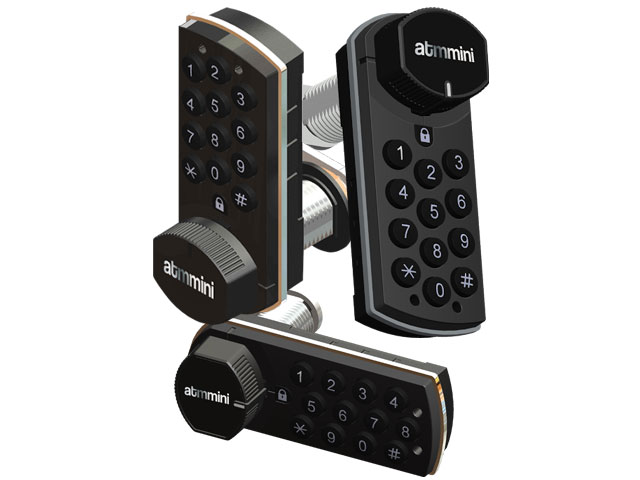

Flexible knob position options

Flexible Installation

4 optional knob positions depending on the ATM model:

Knob at the bottom
Knob at the top
Knob at the left
Knob at the right

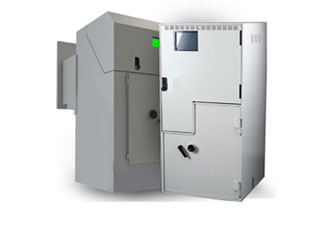

Multi-vendor solution compatibility

Multi-Vendor Solution

ATM Mini Lock is a multi-vendor solution
Easily installed on any brand and model of ATM
Compatible with any other self service terminal

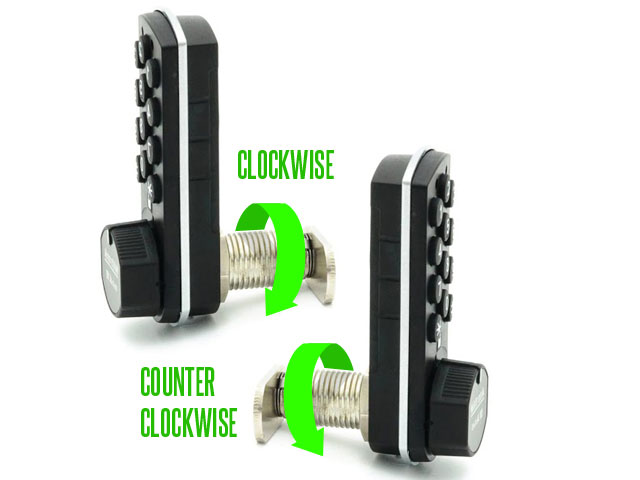

Turning direction options

Turning Direction Options

Clockwise or counter-clockwise turning options
Customize turning direction per ATM position

Technical Data

Product Specifications

Feature	Indoor	Outdoor
Communication	NFC	NFC
Working Temperature	+10°C to +50°C	−20°C to +60°C
IP	IP54	IP54
Knob Durability	>45 Kgf	>45 Kgf
UV Durability	>10000h	>10000h
Vibration Durability	10–200 Hz, 2g	10–200 Hz, 2g
Electrostatic Durability	8 KV	8 KV
Internal Battery	550 mAh	550 mAh
Battery Type	Li-MnO₂	Li-MnO₂
Battery Life	<50000 cycles	<30000 cycles
